4K Switching & Scaling

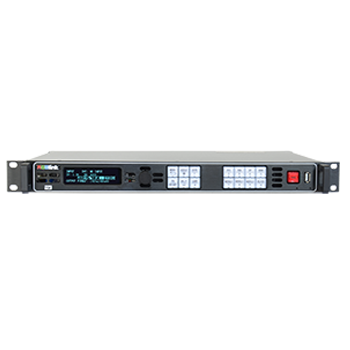

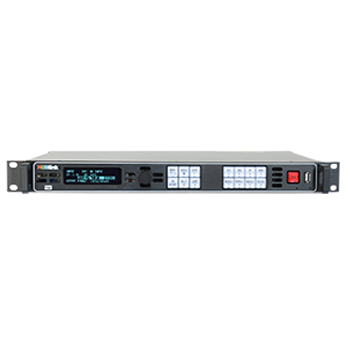

When more than 2K is needed,X1 pro e enables 4K switching,scaling and signal distribution to 2k display devices.Ideal for connection to LED displays where multiple Sender Cards are used, X1pro e supports up tp 4K input signals with Dual Link DVI,HDMI and DisplayPort. Full 4K distribution is available,and with multi-mode operations other creative possibilities are available too,including Dual 2K(4k1k)output. Loop output connectors are provided as well enabling connections for redundant backups or multi-sync applications. X1pro e builds on the everyday X1 capabilities with straight forward 4K scaling and signal distribution that is fast and easy to use.
| Connectors | Input | Standard | 1 × Single Link DVI with loop [HDMI not supported] |
| 1 × Dual Link DVI (HDMI supported) | |||
| 1 × DisplayPort with loop | |||
| Options | 3 x Slots | ||
| Choose from HDMI, DVI, VGA, CVBS, 3G-SDI, USB, Audio Management (3 slots) | |||
| Output | Standard | 4 × DVI | |
| 4 × DVI (backup/loop) | |||
| Communication | RS232 | | |
| USB | Upgrade program with USB flash disk | ||
| Performance | Input resolution | DVI: | VESA: 800x600 | 1024x768 | 1280x1024 | 1600x1200 | 1920x1080 | 1920x1200 | 2048x1152 |
| HDMI: | SMPTE: 480i | 576i | 720p | 1080i | 1080p | 4K 1K | 2160p | ||
| VESA: 800x600 | 1024x768 | 1280x720 | 1280x800 | 1280x960 | 1280x1024 | 1400x1050 | 1600x1200 | 1920x1080 | |||
| 1920x1200 | 2048x1152 | 2560x1600 | 3840x1080 | 3840x2160 | |||
| DP: | SMPTE: 480i | 576i | 720p | 1080i | 1080p | 4K1K | 2160p | ||
| VESA: 800x600 | 1024x768 | 1280x720 | 1280x800 | 1280x960 | 1280x1024 | 1400x1050 | 1600x1200 | 1920x1080 | |||
| 1920x1200 | 2048x1152 | 2560x1600 | 3840x1080 | 3840x2160 | |||
| SDI: | 480i | 576i |720p | 1080i | 1080p | 1080psf | ||
| VGA: | 800x600 | 1024x768 | 1280x1024 | 1600x1200 | 1920x1080 | 1920x1200 | ||
| Refresh rate: | 23.98/24/25/29.97/30/50/59.94/60Hz | ||
| Output resolution | SMPTE: | 720p | 1080p | |
| VESA: | 800x600 | 1024x768 | 1280x720 | 1280x800 | 1280x960 | 1280x1024 | 1400x1050 | 1600x1200 | 1920x1080 | ||
| 1920x1200 | 2048x1152 | |||
| * User defined resolutions are available. | | ||
| Standard supported | SDI: | 3G-SDI | |
| VGA: | VGA-UXGA | ||
| HDMI: | Standard Input: 1.4 | Optional Input: 1.3 | ||
| DisplayPort: | 1.1 | ||
| DVI: | DVI-I, Dual Link | ||
| Power | Input voltage | AC 100~264V (typical value: 110/220); 50/60Hz | |
| Max power | 65W | ||
| Environment | Temperature | -25℃~55℃ (typical value: 25℃) | |
| Humidity | 20%~90%RH | ||
| Physical | Weight | 2.7kg (net weight) | |
| 6.3kg (package weight) | | ||
| Dimensions | 480mm x 303mm x 45mm (net dimension) | | |
| 535mm x 355mm x 130mm (package dimension) | | ||
