● Signal Genreator, Inline Preview Monitor, Media Player, Cross Convertor
● Touch Screen control
● Output a range of signals simulatneously
● Set and select from a range of common output formats
● Genlock Y Generator and Genlock Y & HS In/Loop
● Input live signals for preview and Inspection
● Play and use USB media for custom test signals or as a Media Player source
● On Board Test Pattern Generator
● On board Time Code Generator
● Embedded Audio Test Sgnal Generator

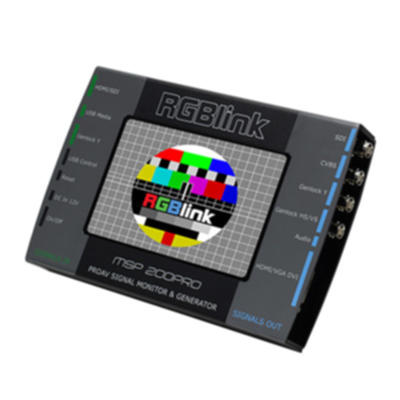

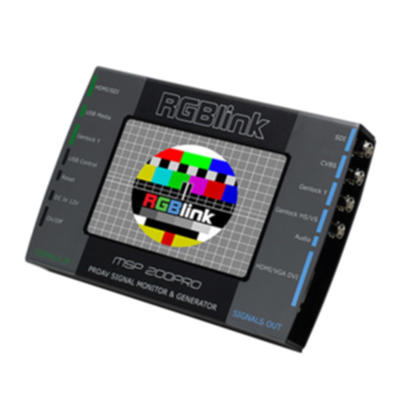

The essential format and Test Pattern Generation, MSP200pro is so much more. MSP200pro has on board preview for external HDMI (and optionally SDI), USB Media in for testing or as a simple media player source . There is wave form monitoring and video monitoring capabilities too. Popular test patterns can be easy selected with motion or without, and time code can be generated and displayed allowing inspection frame delay.
Outputs as standard are (up to) 3G-SDI, CVBS and DVI, with DVI supporting both HDMI and VGA signals also. Genlock is integrated too. MSP200pro is complete with convient ABS case, and may be fitted with Li-on batteries for even more portable use.
While MSP200pro is ideal as a testing tools for the professional in the field, the wode range of unique features makes this every technicians must have tool.
| Connectors | Inputs | Standard: | 1 x HDMI |
| 1 x USB | |||
| 1 x Genlock | |||
| Option Module: | 1 x SDI | ||
| Outputs | Standard: | 1 x SDI | |
| 1 x DVI | |||
| 1 x CVBS | |||
| 2 x Genlock | |||
| 1 x Audio | |||
| Communication Ports | USB | 2.0 | |
| Performance | Input Resolution | HDMI： | SMPTE: 625/25/50 PAL | 525/29.97/59.94 NTSC |720p50/59.94/60 | 1080i50/59.95/60 | 1080p50/59.94/60 | 1080psf |
| VESA: 800x600@60 | 1024x768@60 | 1280x768@60 | 1280x1024@60 | 1600x1200@60 | 1920x1080@60 | |||
| SDI： | 625/25/50 PAL | 525/29.97/59.94 NTSC |720p50/59.94/60 | 1080i50/59.95/60 | 1080p50/59.94/60 | 1080psf | ||
| Output Resolution | SMPTE： | 487i@60 | 483P@60 | 576i@50 | 576P@50 | 720p@23.98/24/25/29.97/30/50/59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60 | |
| VESA： | 640x480@60/75/85 |800x600@60/75/85 | 1024x768@60/75/85 | 1028x1024@60/75/85 | 1028x800@60 | 1360x768@60 | 1366x768@60 | 1400x1050@60 | 1440x900@60 | 1600x1200@60 | 1680x1050@60 | 1920x1200@60 | 2048x1152@60 | 2560x812@60 | 2560x816@60 | ||
| Standard Supported | SDI: | SD-SDI, HD-SDI, 3G-SDI | |
| CVBS | PAL, NTSC | ||
| HDMI: | 1.3 | ||
| USB | 2.0 | ||
| VGA | VESA | ||
| DVI: | 1.0 | ||
| Power | External | Input Voltage | 12DC (via Plug Pack) |
| Max Power | 12W | ||
| Battery (Optional) | Type | Lithium Ion | |
| Cell | 18650 | ||
| Quantity | 2pcs | ||
| Voltage | 3.7V | ||
| Capacity | 1500Mah | ||
| Recharge Time | 1 hr | ||
| Size | 65mm (length) x 18mm (dia) | ||
| Environment | Temperature | 0℃~45℃ | |
| Humidity | 10%~85% | ||
| Physical | Weight | 0.83kg (Net Weight) | |
| Dimensions | 219mm x 148.5mm x 32mm (Device Dimension) | ||
