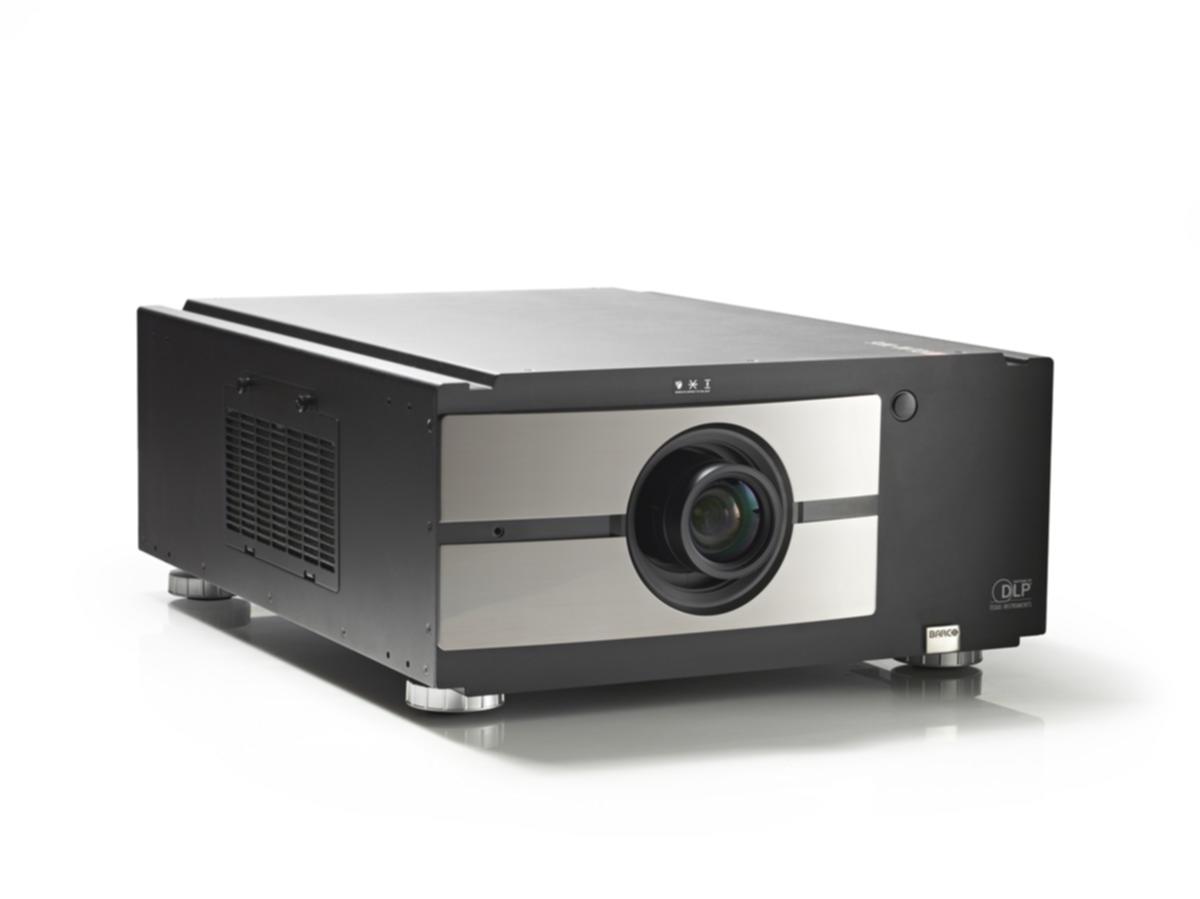

Barco's RLM-W8 brings the saturated colors of 3-chip DLPTM projection to events and fixed installations, at the price of single-chip DLPTM technology.
With an enhanced contrast, quick and creative stacking options as well as built-in warping capabilities for curved surfaces, Barco's RLM-W8 is a versatile choice for mid- to large-sized venues. In addition, it features blending technology to create seamless composite images across a canvas of any size. The RLM-W8 continues the RLM line's tradition of silence as well as low energy consumption.
Our proprietary BarcoLink technology guarantees swift signal distribution between Barco’s projectors and image processors. With BarcoLink, signals are distributed over a BNC coax cable, which is not only more durable but also enables you to lower your costs.
| Projector type | 4K single-chip DLP laser phosphor projector |
|---|---|
| Technology | 0.64" DMD |
| Resolution | 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (WQXGA native) |
| Brightness | 7,000 center lumen |
| Contrast ratio | 1,200:1 sequential, 10,000:1 dynamic * |
| Brightness uniformity | 95% |
| Aspect ratio | 16:10 |
| Lens type | GLD / FLD+ (lens adapter needed) |
| Optical lens shift | Up to 140% shift, depending on lens. Motorized zoom, focus, vertical and horizontal shift |
| Color correction | P7 RealColor™ |
| CLO (constant light output) | Yes* |
| Light source | Laser phosphor |
| Light source lifetime | Up to 40,000 hours** |
| Sealed DLP™ core | Yes |
| Orientation | 360° rotation, no restrictions |
| 3D | Active stereoscopic 3D * / Passive stereo compatible |
| Image processing | Embedded warp & blend engine |
| Keystone correction | Yes |
| Inputs | HDSDI, 2x DP 1.2, 2x dual link DVI-D, HDBaseT, HDMI 2.0*, RJ 45 Ethernet, DMX in/out*, RS232 in, 2x USB, 12V out |
| Input resolutions | Up to 4K UHD @ 60Hz / Up to 2,560 x 1,600 @ 120Hz |
| Software tools | Projector Toolset |
| Control | IR, RS232, RJ45, XLR wired |
| Network connection | 10/100 Ethernet, RJ45 |
| Power requirements | 100-240V / 50-60Hz |
| Power consumption | 700 W nominal, 850 W maximum |
| BTU per hour | 2,400 BTU/h nominal, 2,900 BTU/h maximum |
| Standby power | <0.5W |
| Noise level (typical at 25°C/77°F) | 35 dB(A) |
| Throw Ratio | 0.85 - 1.06 ; 1.06 - 1.43 ; 1.43 - 2.12 ; 2.12 - 3.18 and compatible with FLD/FLD+ series (with adapter) |
| Operating temperature | 10°C (50°F)- 40°C (104°F) (up to 1500m altitude) / 10° (50°F) - 35°C (95°F) (up to 3000m altitude) |
| Storage - transport temperature | -20 to 60 °C |
| Operating humidity | 20 - 80% RH (non-condensed) |
| Storage humidity | 20 - 90% RH (non-condensed) |
| Dimensions (WxLxH) | 480 x 680 x 227 mm / 18.9 x 26.7 x 8.9 in |
| Weight | 25.5 kg / 56.2 lbs |
| Output Resolutions | 2,560 x 1,600 (WQXGA) ; 3,840 x 2,400 (16:10) ; 3,840 x 2,160 (16:9) ; 4,096 x 2,160 (DCI) |
| Standard accessories | Power cord, wireless remote control |
| Certifications | CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO |
| Warranty | Limited 3 years parts and labor. Extendable up to 5 years |
| * | * SW upgradable. Please contact an authorized Barco representative for details.<\br> When used in long-life mode, available through SW upgrade. |
