● 4K@60Hz on HDMI, DisplayPort and/or 12G-SDI
● Dedicated PVW Output
● Interactive Touch Screen Display and Video Preview
● Integrated EDID Management
● DSK / Chroma Key
● Soft Edge Blending
● Advanced Image Enhancements including Noise Reduction
● De-Interlacing
● Genlock Y In
● Control Remotely from XPOSE, T-TWO or RGBlink OpenAPI

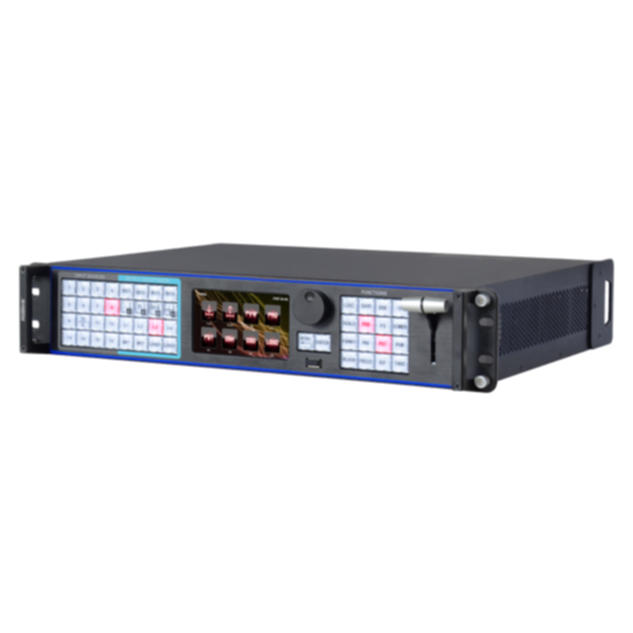

For high performance 4K video end-to-end, D6 delivers. Modern presentation processing for applications now demanding 4K, D6 builds on the tradition of its predecessors and innovations of RGBlink Venus platform, while adding new and enhanced features. All inputs are modular with options including 4K 60fps on HDMI,DisplayPort and Dual Link DVI, as well as 12G-SDI for uncompressed 4K. D6 has RGBlink XPOSE built right in for interactive and visual configuration in conjunction with the large integrated touch screen LCD display. Output 2K or 4K on mixed signals. Preview sources via dedicated PVW output. D6 supports multi-layer mixed signal 4K@60 for conversion, scaling and presentation operations and much more.
| Connectors | Inputs | SmartSlots | 4 |
| Signals Supported | HDMI | SDI (BNC) | DisplayPort | ||
| Outputs | Output SmartSlots | 4 | |
| Signals Supported | HDMI | SDI (BNC) | DisplayPort | ||
| Communication | Network | TCP/IP | |
| Performance | Input Resolution | SDI | 720p@50/60 | 1080i@59.94/60 | 1080p@23.98/24/25/29.97/30/59/59.94/60 | 1080psf@23.98/24/25/29.97/30 | 3840x2160p@30 |3840x2160@60 | |
| DVI&HDMI | SMPTE: 625@25/50 PAL | 525@29.97/59.94 NTSC | 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@50/59.94/60 VESA: 800x600@60 | 1024x768@60 | 1280x768@60 | 1280x1024@60 | 1600x1200@60 | 1920x1080@60 | 3840x2160@30 | 3840x2160@60 | ||
| Output Resolution | Select from standard set or select user configurable | ||
| SMPTE | 625/25/50 PAL | 525/29.97/59.94 NTSC | 720p@50/59.94/60 | 1080p@50/59.94/60 | 1080i@50/59.94/60 | 1280x720@23.98/24/25/29.97/30 | 1920x1080@23.98/24/25/29.97/30 | ||
| VESA | 800x600@60 ~ 3840x2160@60 | ||
| Refresh Rates | 23.98 | 24 | 25 | 29.97 | 30 | 50 |59.94 | 60 | 75 | ||
| Supported Standards | SDI: | SMPTE 259M | SMPTE 292M | 424M | |
| VGA: | VGA-UXGA | ||
| DP: | 1.2 | ||
| HDMI: | 1.4 | 2.0 | ||
| CVBS: | PAL | NTSC | ||
| Power | Input Voltage | 100V-240V 50/60Hz Auto-ranging | |
| Max Power | 200W | ||
| Power Supply | Slot for Redundant Hot Swap PSU | ||
| Power Monitoring | Intelligent Switching | ||
| Environment | Temperature | 0-40℃ | |
| Humidity | 10%~85% | ||
| Physical | Device Dimension | 484 x 546 x 101mm | |
| Package Dimension | 630 x 595 x 250mm | ||
