The stunning image quality and laser phosphor light source of Barco's F80 projectors enable you to provide exceptional experiences while saving both time and money. They're designed for fixed installation in a wide range of applications such as museums, board rooms, and auditoriums. Thanks to their 3D capability, they're also perfectly fit for theme park dark rides and interactive experiences.

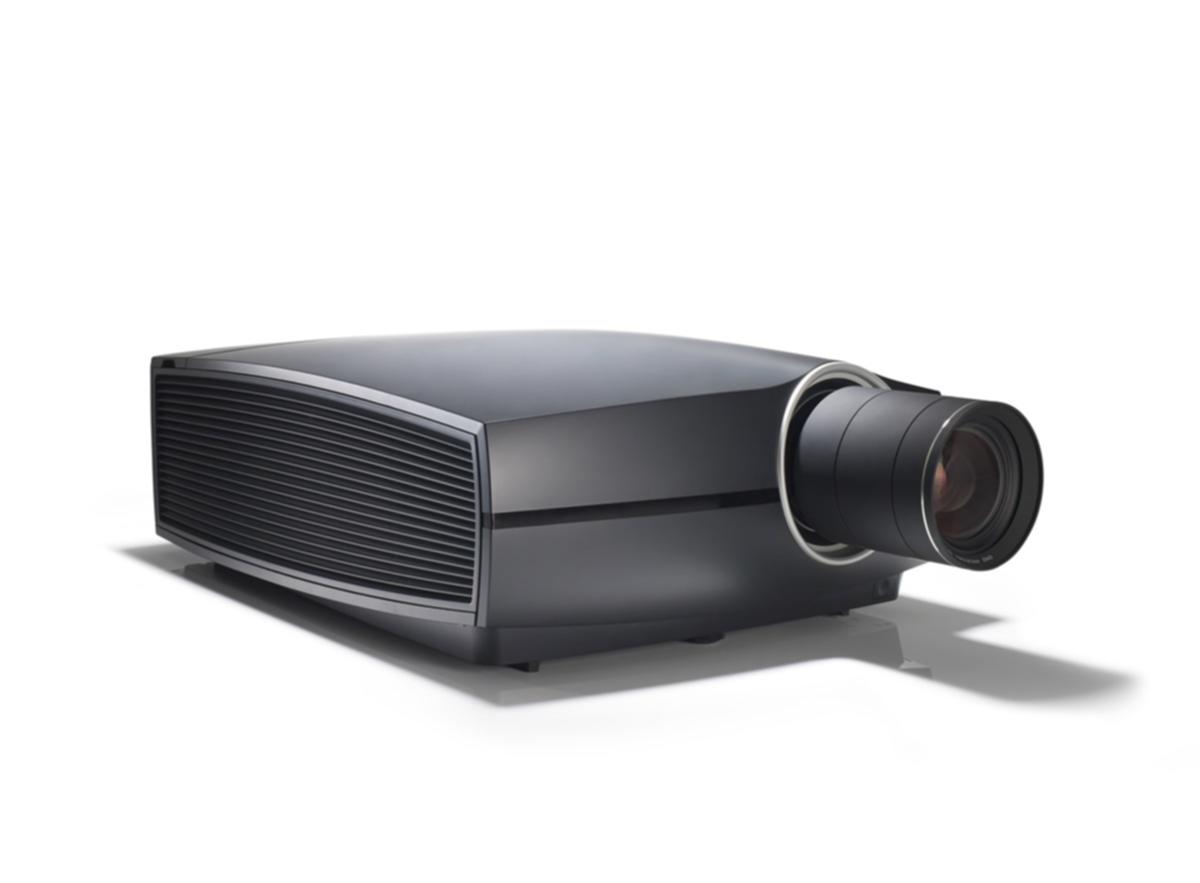

The F80-4K9 delivers stunning images at 4K UHD resolution with a high level of detail, and highly saturated colors that allow for accurate color reproduction at all times. What's more it features the powerful Barco Pulse processing that allows for sharper images and less latency thanks to its Single Step Processing (SSP).
With this projector you can increase your uptime while driving costs down. Through its laser-phosphor light source and advanced cooling design, it provides a long operating time without need for lamp changes - resulting in considerable cost-savings on maintenance and consumables.
The F80-4K9 gives you more flexibility in projector location and orientation as it can run in any orientation. Thanks to its wide array of all-glass lenses and wide lens shift ranges, the F80-4K9 accommodates almost any projector configuration.
| Projector type | 4K Single chip DLP laser phosphor projector |
|---|---|
| Resolution | 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (WQXGA native) |
| Brightness | 9,000 center lumens |
| Contrast ratio | 1,200:1 sequential, 10,000:1 dynamic* |
| Brightness uniformity | 95% |
| Aspect ratio | 16:10 |
| Lens type | GLD / FLD+ (lens adapter needed) |
| Optical lens shift | Up to 125% shift, depending on lens. Motorized zoom, focus, vertical and horizontal shift |
| Color correction | P7 RealColor™ |
| CLO (constant light output) | Yes* |
| Light source | Laser phosphor |
| Light source lifetime | Up to 40,000 hours, depending on mode of operation |
| Sealed DLP™ core | Yes |
| Orientation | 360° rotation, no restrictions |
| 3D | Active stereoscopic 3D* / Passive stereo compatible |
| Image processing | Embedded warp & blend engine |
| Keystone correction | Yes |
| Inputs | HDSDI, 2x DP 1.2, 2x dual link DVI-D, HDBaseT, HDMI 2.0*, RJ 45 Ethernet, DMX in/out*, RS232 in, 2x USB, 12V out |
| Input resolutions | Up to 4K UHD @ 60Hz / Up to 2,560 x 1,600 @ 120Hz |
| Software tools | Projector Toolset |
| Control | IR, RS232, RJ45, XLR wired |
| Network connection | 10/100 Ethernet, RJ45 |
| Power requirements | 100-240V / 50-60Hz |
| Power consumption | 950 W nominal, 1100 W maximum |
| BTU per hour | 3,250 BTU/h nominal, 3,800 BTU/h maximum |
| Standby power | <0.5W |
| Noise level (typical at 25°C/77°F) | 35 dB(A) |
| Operating temperature | 10°C (50°F)- 40°C (104°F) (up to 1500m altitude) / 10° (50°F) - 35°C (95°F) (up to 3000m altitude) |
| Storage temperature | -20 to 60 °C |
| Operating humidity | 20-80% RH (non-condensed) |
| Storage humidity | 20-90% RH (non-condensed) |
| Dimensions (WxLxH) | 480 x 680 x 227 mm / 18.9 x 26.7 x 8.9 in |
| Weight | 25.5 kg / 56.2 lbs |
| Standard accessories | Power cord, wireless remote control |
| Certifications | CE, FCC Class A, cNemkoUS, CCC, EAC, KSA, RCM, UkrSEPRO |
| Warranty | Limited 3 years parts and labor. Extendable up to 5 years |
| * | * SW upgradable. Please contact an authorized Barco representative for details.<\br> ** When used in long-life mode, available through SW upgrade |
