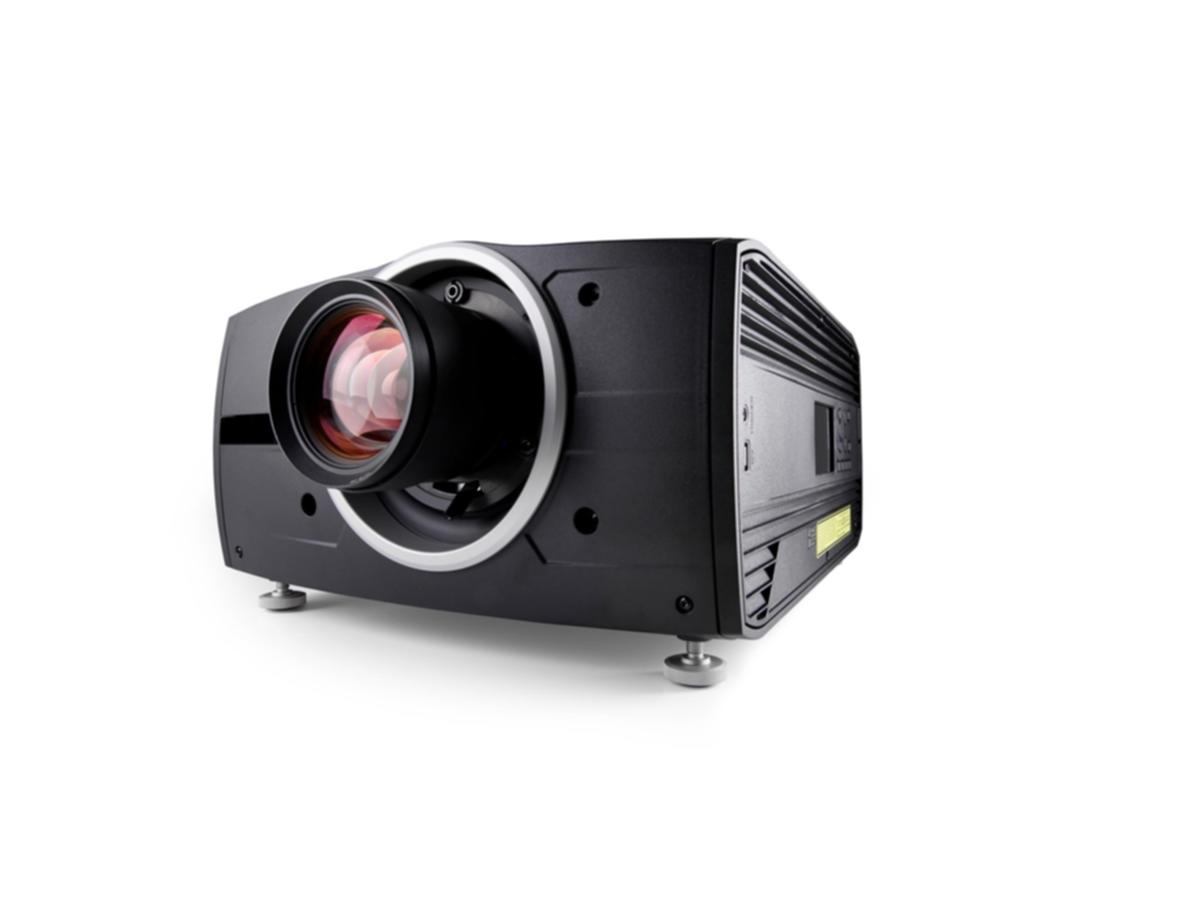

The F70-W8 laser phosphor projector answers to the ProAV market's specific requirements - including high robustness, longer lifetime, and laser-sharp image quality. Projectors that do not meet these demands don't last long or might require frequent and expensive maintenance.
Thanks to its rugged design Barco’s F70 is motion platform capable, making it the perfect choice for theme parks, dark rides and the most demanding fixed installations. With a lifetime of up to 60,000 hours (depending on the mode of operation), the F70 is one of the most durable projectors on the market and is ready for service in the most demanding environments.
The F70 is designed for performance and reliability. Capable of running in any orientation, the F70 projectors offer more installation flexibility. All of Barco's F-series projectors feature the same high-resolution FLD and FLD+ lenses so that you can reuse your lenses.
With brightness levels of 8,000 lumens, the F70-W8 is one of the brightest single-chip DLP projectors on the market. With the Constant Light Output (CLOTM) functionality, the projector produces constant brightness and color over a long period of time.
| Brightness | 8,000 lumens |
|---|---|
| Contrast ratio | 1,800:1 sequential, 50,000:1 dynamic |
| IR for NVG | no |
| Brightness uniformity | 90% |
| Aspect ratio | 16:10 |
| Projector type | 1DLP laser phosphor |
| Resolution | 1,920 x 1,200 (WUXGA) |
| Lens type | FLD/FLD+ |
| Optical lens shift | Up to 134% lens shift, depending on lens. Motorized zoom, focus, vertical and horizontal shift, iris* and shutter. |
| Color correction | P7 RealColorTM |
| CLO (constant light output) | Yes* |
| Light source | Laser phosphor |
| Light source lifetime | Up to 60,000 hours, depending on mode of operation |
| Sealed DLP™ core | Yes |
| Orientation | 360° rotation, no restrictions |
| 3D | Active stereoscopic 3D* |
| Image processing | Embedded warp & blend engine |
| Keystone correction | Yes |
| Inputs | HDSDI 2x DP1.2 2x dual link DVI-I HDBaseT upgradable HDMI2.0 upgradable RJ 45 Ethernet DMX in/out* (upgradable) RS232 in 2x USB 12v out |
| Input resolutions | Including and up to: 1,920 x 1200 @ 60Hz 2,560 x 1,600 @ 120Hz |
| Software tools | Projector Toolset |
| Control | IR, RS232, RJ45 |
| Network connection | IR, RS232, RJ45 |
| Power requirements | 100-240V / 50-60Hz |
| Power consumption | 1,100 W Max. |
| BTU per hour | Max 4,000 BTU/h |
| Noise level (typical at 25°C/77°F) | 36 dB(A) |
| Operating temperature | 10 - 40 °C (sea level) |
| Storage temperature | -20 to 60 °C |
| Operating humidity | 20 - 80% RH |
| Storage humidity | 10 - 90% RH |
| Dimensions (WxLxH) | 475 x 593 x 286 mm / 18,7 x 23,3 x 11,2 in |
| Weight | 37 kg / 81,5 lbs |
| Standard accessories | Power cord, wireless remote control |
| Certifications | CE, FCC Class A and cCSAus |
| Warranty | Limited 3 years parts and labor. Extendable up to 5 years |
| Notes | * SW upgradable. Please contact an authorized Barco representative for details. |
