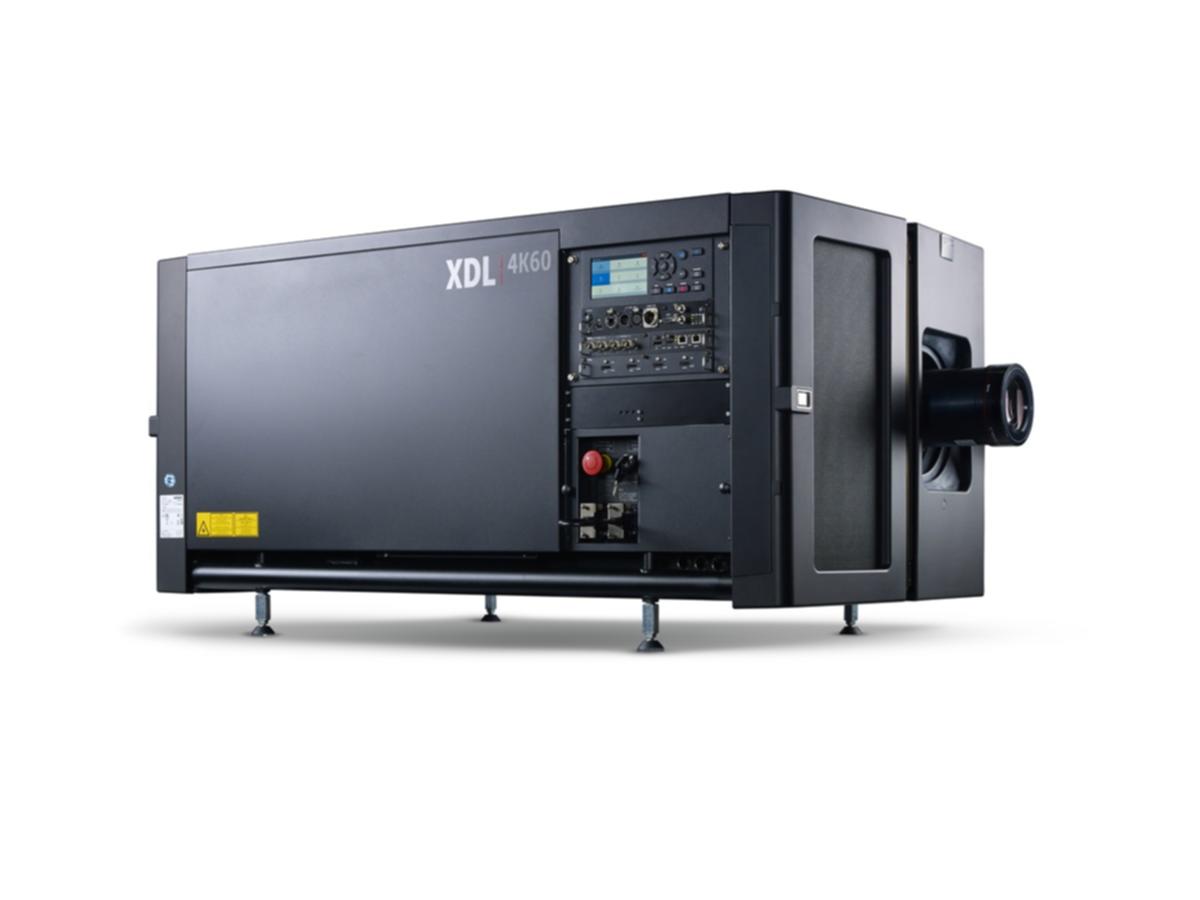

The XDL-4K60 generates no less than 60,000 lumens brightness with colors that are just extraordinary. For bigger screens, more pixels, more impact. Plus incredible RGB laser performance, signal flexibility up to a comfortable 120 Hz, and no alignment.
Offer visitors crisper, more realistic contrast for greater impact with images of breathtaking depth thanks to their native 4K resolution up to 120Hz. And when you need it, use brightness up to a massive 60K lumens.
Want to drive down your cost-per-lumen? A single XDL is the answer. Their RGB laser light source slash image flicker and lamp-related costs and maintenance (such as lamp replacements). Compared to xenon projectors, the XDLs also consume 40% less power - and you can re-use your existing Barco XLD+ lenses. Truly reliable, expect a lifetime of up to 20,000 hours with minimum downtime.
Installing one projector is always easier than having to install several. It means less equipment to transport and set up – and fewer possible points of failure. XDL speeds up installation by reducing alignment time. The projectors provide an exceptional lens shift of up to 100% so you can install them anywhere you like. You can also easily match images to your projection surface using on-board real-time warping and blending.
Get the absolute most impact with superb 3D performance based on color separation using twin wavelengths and a more effective use of light. Forget the issue of ghosting – there is none. And project onto white rather than silver screens.
| Projector type | Native 4K 3-chip DLP digital projector up to 120 Hz |
|---|---|
| Technology | 1.38" DMD™ x3 |
| Resolution | 4,096 x 2,160 |
| Brightness | Up to 56,000 center lumens using HC lenses / Up to 60,000 center lumens using HB lenses |
| Native contrast ratio | 2,800:1 (typical using HC lenses) / 500:1 ANSI contrast (typical) | 2,000:1 (typical using HB lenses) / 450:1 ANSI contrast (typical) |
| Prime lenses | HC: 1.13-1.72; 1.35-1.86; 1.46-2.10; 1.65-2.60; 2.00-3.35 / HB : XLD 0.8; 1:0 ; 1.45-1.8; 1.8-2.4; 2.2-3.0; 2.8-5.5; 5.5-8.5 |
| Optical lens shift | V: -100% to +100% / H: +/- 40% (lens dependent) |
| Light source | Direct coupled RGB lasers 6P |
| Light source lifetime | 20.000 hours* |
| Color correction | P7 |
| Optical dowser | Standard |
| Orientation | Tilt 45° up and 30° downwards | Rotation – 20 degrees / +90 degrees (=Portrait) |
| Sealed DLP™ core | Standard |
| Inputs | Slot 1 :Dual HDBt; HDMI 2.0 (HDCP 2.2); DP 1.2 (HDCP 1.3); Quad SDI/HDSDI/dual HDSDI/6G/BarcoLink | Slot 2: Quad DP1.2 |
| Input resolutions | From NTSC up to 4K (4,096 x 2,160) 120 Hz |
| Picture-in-picture | Two sources simultaneously |
| CLO (constant light output) | Standard |
| ScenergiX | Horizontal and vertical edge blending |
| Image processing | Embedded warp & blend engine |
| Keystone correction | Yes |
| Integrated web server | Yes |
| Software tools | Projector Toolset |
| Control | XLR wired + IR, RS232, Wifi, GSM (opt) |
| Network connection | 10/100 base-T, RJ-45 connection, Wifi (optional) |
| Dimensions (WxLxH) | Projector: 744 x 1,445 x 706 mm / 29.3 x 56.9 x 27.8 inches (with feet, no lens) | Two chillers, each with the following dimensions: 701 x 701 x 800 mm / 27.6 x 27.6 x 31.5 inches |
| Weight | Projector: 235kg (~520lb) / Chillers: ~115kg (~250lb) per chiller (two chillers needed) |
| Cooling liquid hose length | 2.5-5-10m (8.2-16.4-32.8ft) |
| Power requirements | Projector: 200-240/346-415V 50-60Hz 16A 3W+N+PE (Y connection) / Power cord size range: 4 sq mm to 6 sq mm, 10AWG to 8AWG /Circuit breaker range: 25A to 40A | 200-240V 3W+PE 28A 50-60Hz (/\- connection) / Power cord size: 6 sq mm, 8AWG / Circuit breaker: 40A Chillers: 230/400V 3W+N+PE 16A, 2.5 sq mm (Y connection) or 208V / 3W+PE (/\- connection) / Max. 16A per phase |
| Ambient temperature | 10-35°C (95°F) Max. (projector and chillers) |
| Operational humidity | 5-80% (non condens) |
| Power consumption | Projector @ full laser power: 6.7 kW (2D or Polarization 3D) / 3.6 kW (Barco Laser3D - 6P) Chillers @ full laser power: 3.0 kW (2D or Polarization 3D) / 2.5 kW (Barco Laser3D - 6P) |
| 3D systems | Color3D (Barco Laser3D): Native 6-primary color-3D system. Only requires color filter glasses / Active glasses systems / Polarization recuperation systems |
| Safety class | Class 1, RG3 |
| Certifications | CE; ETL/UL/FCC |
| *Note | *Less than 20% decrease during a runtime of 20,000 hrs |
