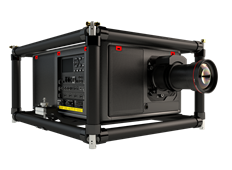

Projector type | 4K UHD 3-chip DLP digital projector |
|---|
Technology | 0.9" DMDTM x3 |
|---|
Resolution | 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing) |
|---|
Brightness | 20,000 (4K UHD) center lumens / 19,000 (4K UHD) ansi lumens*22,000 ISO lumens* |
|---|
Contrast ratio | 2200:1 |
|---|
Brightness uniformity | 95% |
|---|
Aspect ratio | 16:10 |
|---|
ScenergiX | Horizontal and vertical edge blending |
|---|
Lenses | TLD+ 0,37; 0,65-0,85; 0,8-1,16; 1,25 -1.6:1 ; 1.5-2.0:1 ; 2.0-2.8:1 ; 2.8-4.5:1 ; 4.5-7.5:1 ; 7.5-11.5:1 |
|---|
Optical lens shift | Vertical between -100% to +130%, depending on lensHorizontal up to +/- 40%, depending on lensMotorized zoom and focus (with lens memory on TLD lenses)Motorized lens shift (with position memory on all lenses) |
|---|
Color correction | P7 |
|---|
Light source | Laser phosphor with inorganic phosphor wheel |
|---|
Light source lifetime | >20,000 hrs |
|---|
Optical dowser | Digital |
|---|
Picture-by-picture | Two sources simultaneously |
|---|
Sealed DLP™ core | Standard |
|---|
Orientation | 360° |
|---|
DMX 512 | Standard |
|---|
WARP | Direct adjust OSD + toolset |
|---|
Image processing | Embedded warp & blend |
|---|
Processing | Pulse Electronics |
|---|
Keystone correction | Yes |
|---|
Integrated web server | Yes |
|---|
CLO (constant light output) | Standard |
|---|
3D | Active eye wear (optional), passive circular (optional); 2 flash up to 200Hz |
|---|
Inputs | Single HDBaseT; HDMI2.0 (HDCP2.2, HDR10); DP 1.2 (HDCP1.3); Quad 3G/12G SDI/BarcoLink ULTRA |
|---|
Optional Inputs | Quad DP1.2, Fiber SFP |
|---|
Input resolutions | From NTSC up to 4K (4,096 x 2,160)Refresh rates:24hz to 120hz 4K/4KUHD (4096 x 2160 / 3860 x 2400) to 240hz WQXGA (2560 x 1600) |
|---|
Max. pixel clock | 600 Mhz |
|---|
Software tools | Projector Toolset + Android** app + iOS** app |
|---|
Control | XLR wired + IR, RS232, Wifi**, GSM** |
|---|
Network connection | 10/100 base-T, RJ-45 connection, Wifi** |
|---|
Power requirements | 120-160 V (reduced power)18.5A / 200-240V (+/- 10%), 13.5A, 50-60Hz |
|---|
Max. power consumption | 1800W nom/ 2400w max@230 volts ECO STBY<2W1560W nom/ 1950w max @ 120 voltsECO STBY<2W |
|---|
Noise level (typical at 25°C/77°F) | 49 dB(A) (TBD) |
|---|
Operational ambient temperature | 0-40°C / 32°-104°F *** |
|---|
Operational humidity | 0-80% (non condens) |
|---|
Dissipation BTU | Max. 6,900 BTU/h |
|---|
Dimensions (WxLxH) | 725 x 540x 339 mm / 28.54 x 21.26 x 13.3' |
|---|
Shipping Dimensions | incl. pallet(WxLxH) 850 x 665 x 613 mm / 33.46 x 26.18 x 24.13 inches |
|---|
Weight | 48 kg (105lbs) / shipping weight from factory: 61 kg (134.5 lbs) |
|---|
Standard accessories | Power cord, wireless/XLR wired rugged remote control |
|---|
Certifications | Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs |
|---|
Warranty | 3 years |
|---|
*Note | *Brightness levels +/- 10%** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info.***at higher altitude light output might be dimmed |
|---|
