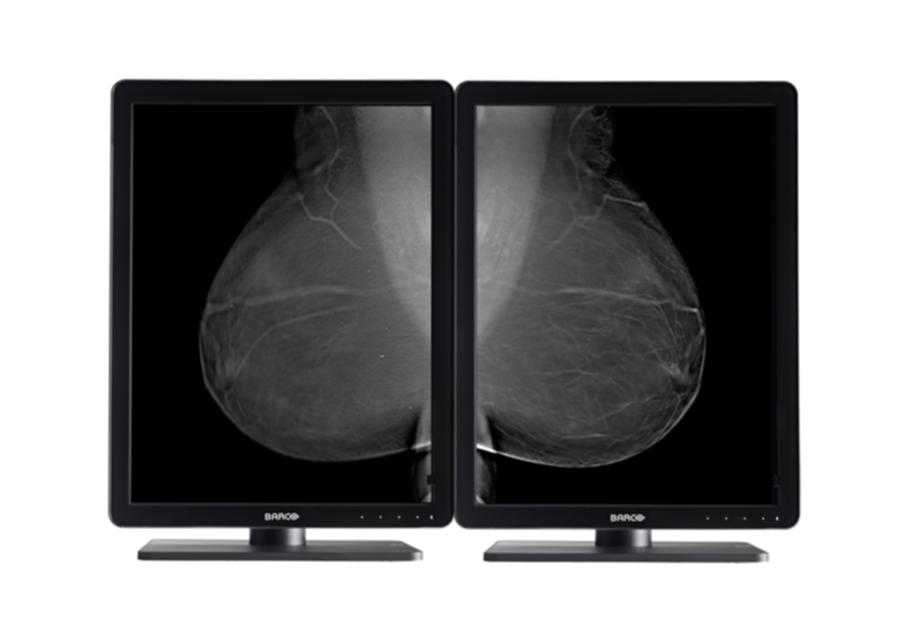

Nio 5MP LED (MDNG-5221)

5MP diagnostic grayscale display system
  • Grayscale medical display with 2560 x 2048 resolution
  • Barco LED technology to unveil the subtlest details
  • Front sensor for on-demand image quality check
  • Cleared for mammography

FDA-cleared for radiology and mammography viewing and featuring a number of unique imaging technologies, Nio 5MP LED provides excellent image quality for confident diagnoses.

Thanks to the high-bright LED backlights, Nio 5MP LED helps you see more shades of gray. Additionally, Uniform Luminance Technology ensures subtle details become more noticeable more quickly, resulting in reduced windowing and leveling time.

Quality assured

The unique front-of-screen sensor guarantees consistent and precise images at all times. It works seamlessly with Barco's online MediCal QAWeb software for automated Quality Assurance and on-demand calibration, so you are viewing perfect DICOM images.

High return

Using energy-efficient LED backlights, Nio 5MP LED is as low in power consumption as it is high in brightness. Because it uses less power, the display produces less heat and requires less cooling, which impacts maintenance and operational costs. Additionally, the LED backlights offer a long lifetime - even at high brightness - providing an excellent return on your investment.


5 MegaPixel resolution (2,048 x 2,560 or 2,096 x 2,800)21-inch screen diagonalGrayscale displayLong lifetime LED technologyFront sensor for stabilized luminanceMediCal QA softwareincludedUniform LuminancetechnologyUltra-smooth grayscaleprecision10 bit Look Up TableDisplayPort readyStandard 5-year warrantyDesigned and assembled with special attention for the protection of our environmentAnti-reflective protectivefront glass


Features

  • High-bright and power-efficient LED backlights
  • Accurate grayscale rendering
  • Front sensor and MediCal QAWeb for easy DICOM conformance
  • High-performance 3D rendering with full 3D, OpenGL and DirectX support


Specifikációk

Screen technology a-si TFT active matrix dual domain IPS
Backlight LED
Active screen size (diagonal) 540 mm (21.3”)
Active screen size (H x V) 422.4 mm x 337.9 mm (16.5 x 13.3“)
Aspect ratio (H:V) 5:4
Resolution 5 MP (2560 x 2048)
Pixel pitch 0.165 mm
Color imaging No
Gray imaging Yes
Number of grayscales (LUT in/LUT out) 1024 gray levels (10/12)
Viewing angle (H, V) 176°
Uniform Luminance Technology (ULT-LED) Yes
Backlight Output Stabilization (BLOS) Yes
Front sensor Yes
Maximum luminance 1225 cd/m² typical
DICOM calibrated luminance 500 cd/m²
Contrast ratio 1200:1 typical
Response time (Tr + Tf) 25 ms typical
Scanning frequency (H; V) 15-129 kHz; 24-100 Hz
Housing color Black / White
Video input signals DVI-D Dual Link / DisplayPort
Video inout terminals N/A
USB ports 1 upstream, 2 downstream
USB standard 2.0
Power requirements (nominal) 100-240V
Power consumption (nominal) 43W
Power save mode Yes
Power management DVI-DMPM
Dot clock 280 Mhz
OSD languages English, German, French, Dutch, Spanish, Italian, Portugese, Polish, Russian, Swedish, Chinese (simplified), Japanese, Korean, Arabic
Dimensions with stand (W x H x D) Portrait: (w x hmax x d) 407 x 623 x 235 mm (w x hmin x d) 407 x 523 x 235 mm
Landscape: (w x hmax x d) 493.5 x 579 x 235 mm (w x hmin x d) 493.5 x 479 x 235 mm
Dimensions w/o stand (W x H x D) 407 x 493.5 x 84 mm
Dimensions packaged (W x H x D) 676 x 565 x 317 mm
Net weight with stand 13.25 kg
Net weight w/o stand 8.23 kg
Net weight packaged with stand 19.61 kg
Net weight packaged w/o stand N/A
Height adjustment range 100 mm
Tilt -5° / +25°
Swivel -30° / +30°
Pivot hardware 90°
Mounting standard VESA (100 mm)
Screen protection Protective, non-reflective glass cover
Recommended modalities All digital images, including digital mammography
Certifications CE0120 (MDD 93/42/EEC; A1:2007/47/EC class IIb product), CE - 2004/108/EC, CE - 93/42/EEC; A1:2007/47/EC class II b, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1-08:2008, DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2003, KC, VCCI, FCC class B, ICES-001 Level B, FDA 510(k), RoHS
Supplied accessories User Guide
Quick Installation Sheet
Video cables (1 x DVI Dual Link, 1 x DisplayPort)
Main cables (UK, European (CEBEC/KEMA), USA (UL/CSA; adaptor plug NEMA 5-15P), Chinese (CCC))
USB 2.0 cable
External power supply
Optional accessories None
QA software MediCal QAWeb
Ambient light sensor MK2
Units per pallet 4 per layer
Pallet dimensions (W x H) 80 cm x 120 cm
Warranty 5 years
Operating temperature 0°C to 40°C (15°C to 30°C within specs)
Storage temperature -20°C to 60°C
Operating humidity 8% - 80% (non-condensing)
Storage humidity 5% - 95% (non-condensing)
Operating altitude 2000 m
Storage altitude 7500 m
