The G60 series expands the single-chip offering with six quality projectors between 7 and 10K. It opens up the possibilities to a wider range of applications while still relying on the valued Barco service and support.
The laser light source ensures great image quality, on the one hand, but also lower maintenance compared to most lamp-based projectors on the market. Thanks to Barco's Projector Toolset software, installing and managing your projector(s) can be done from the comfort of your own computer.

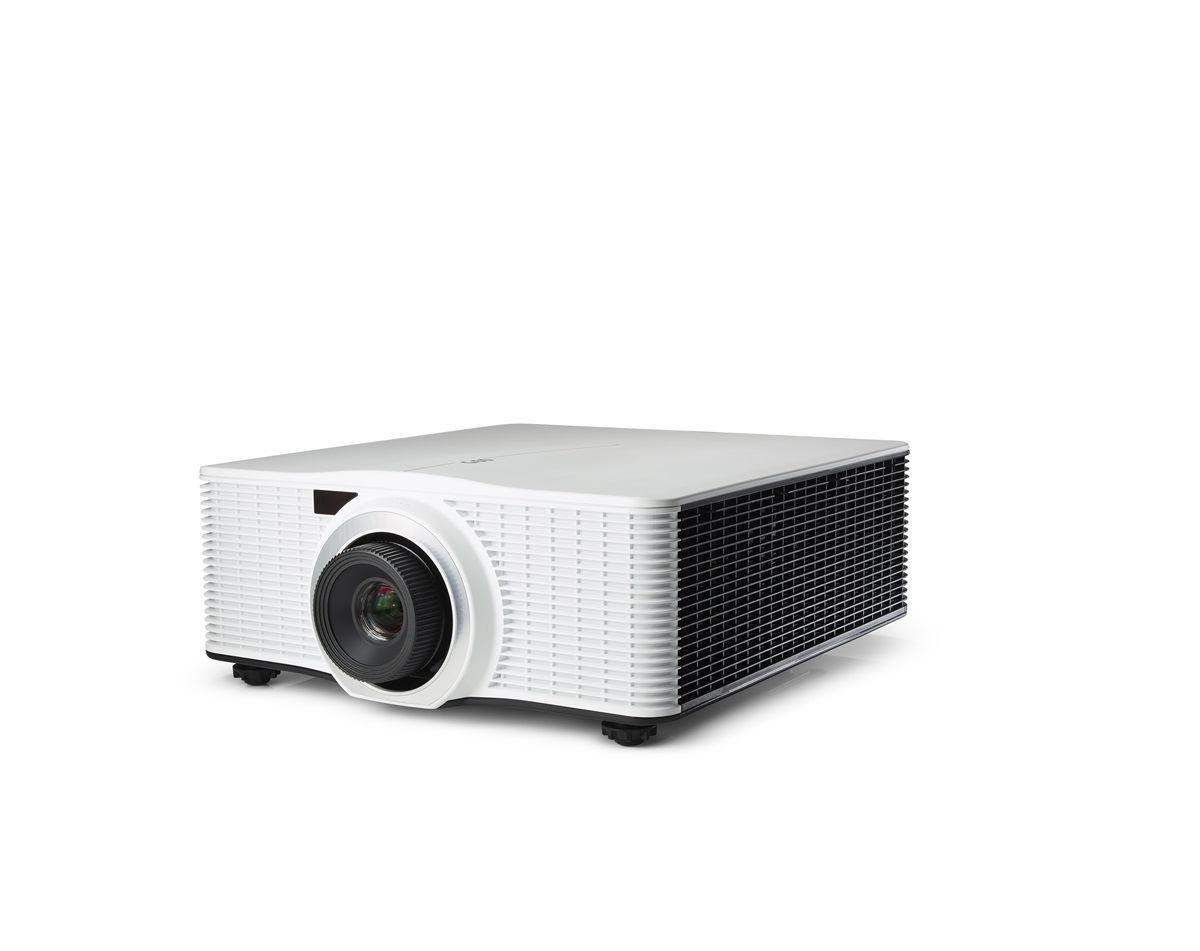

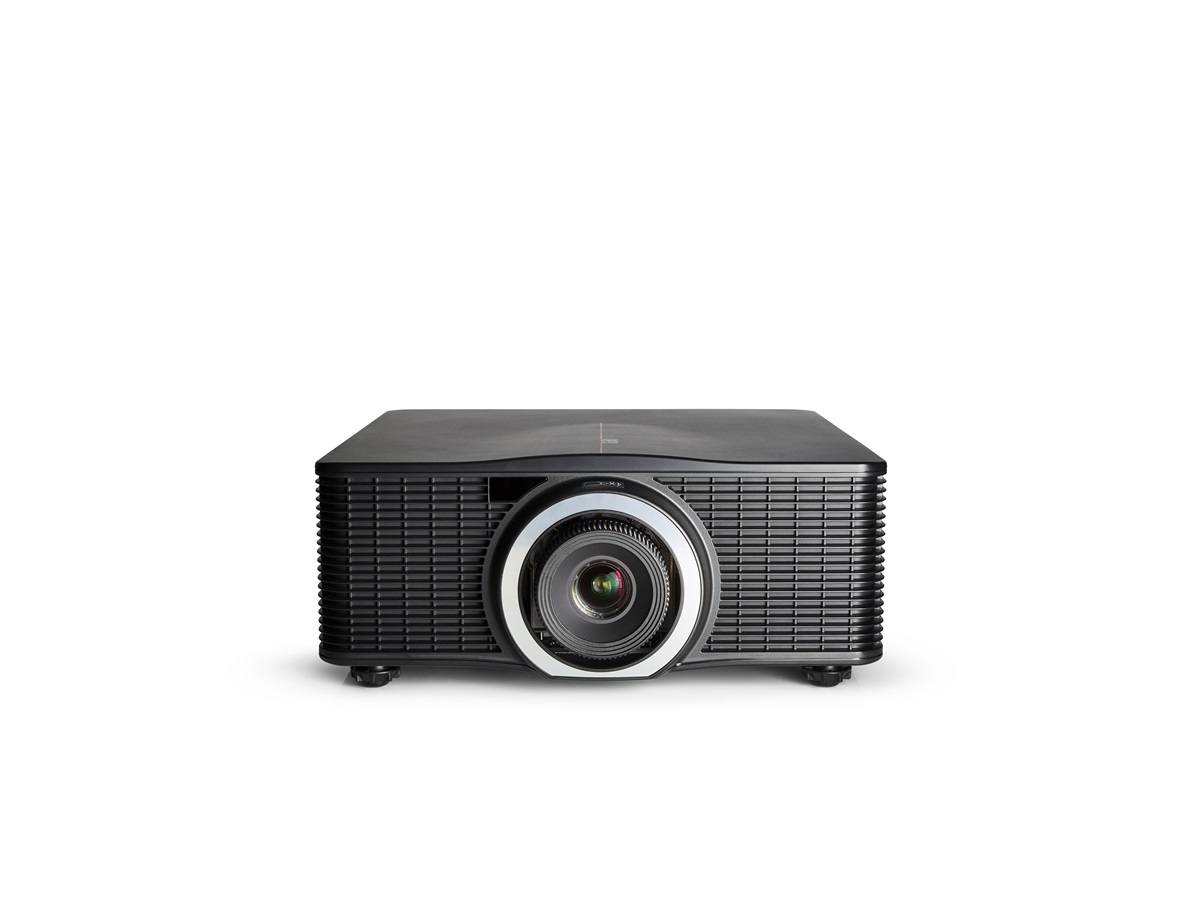

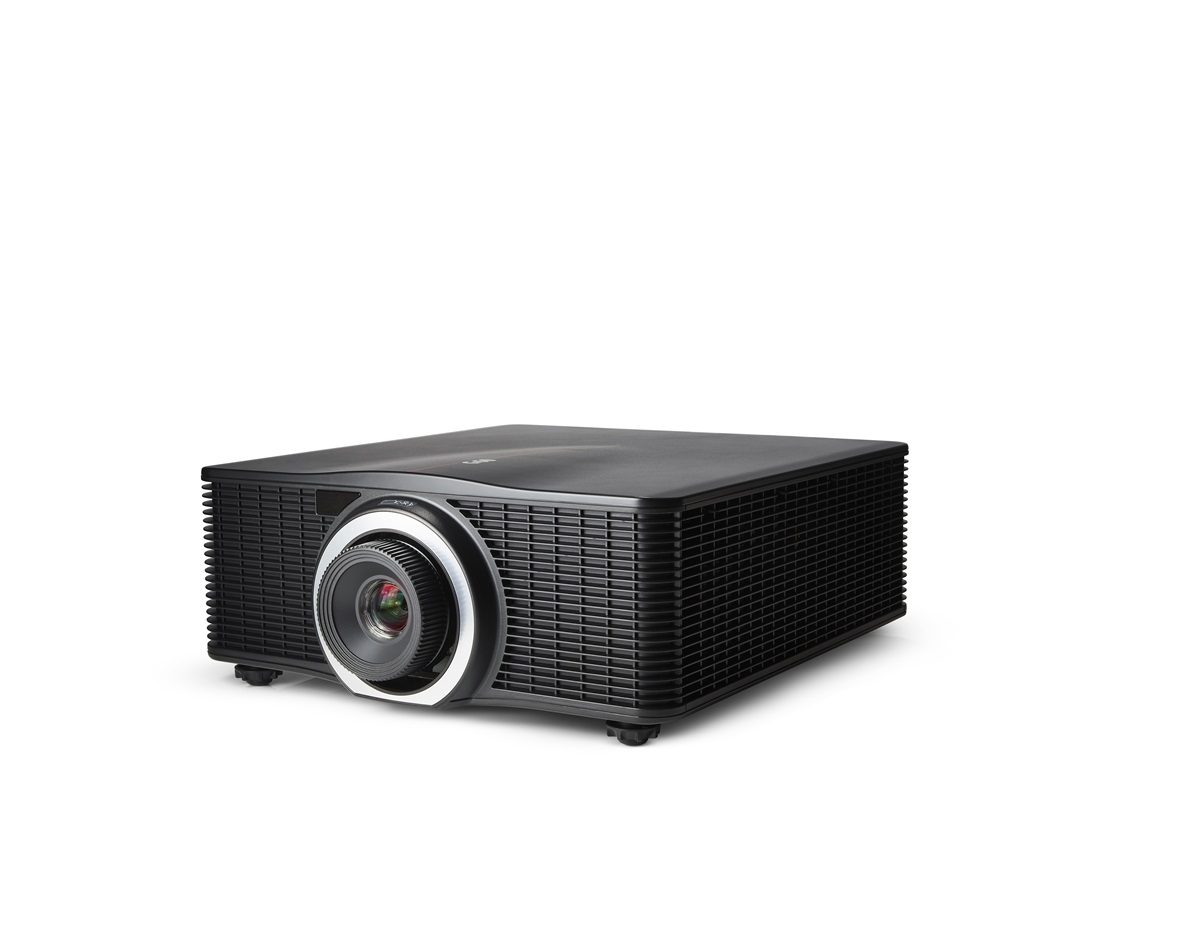

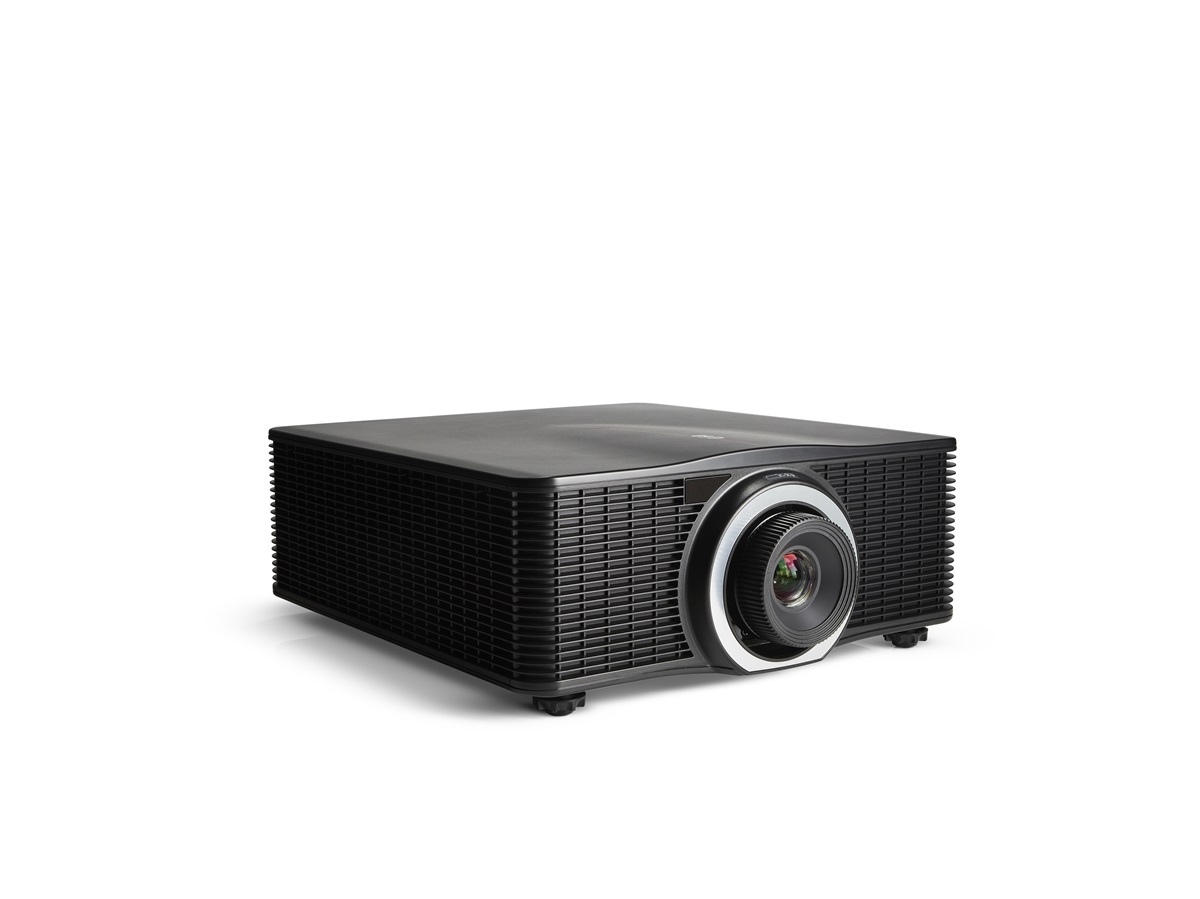

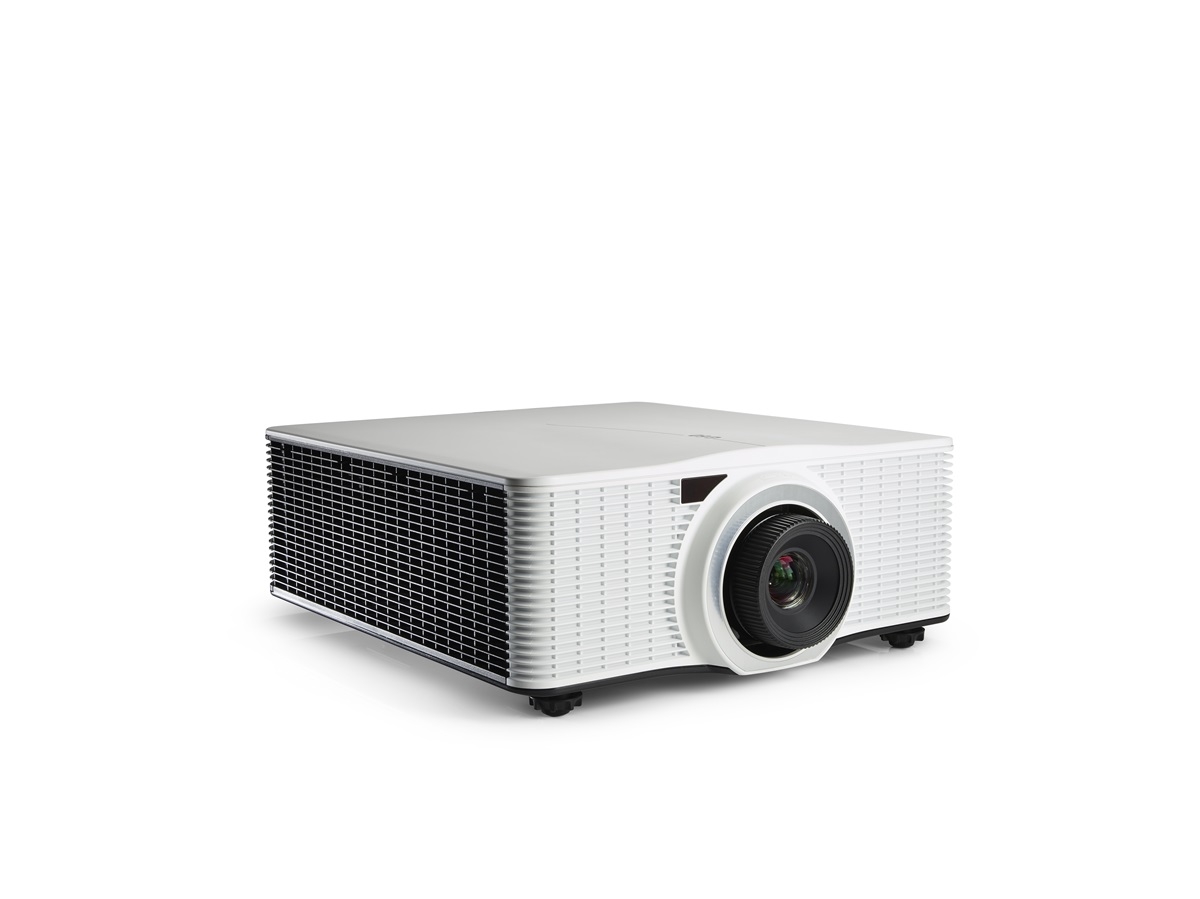

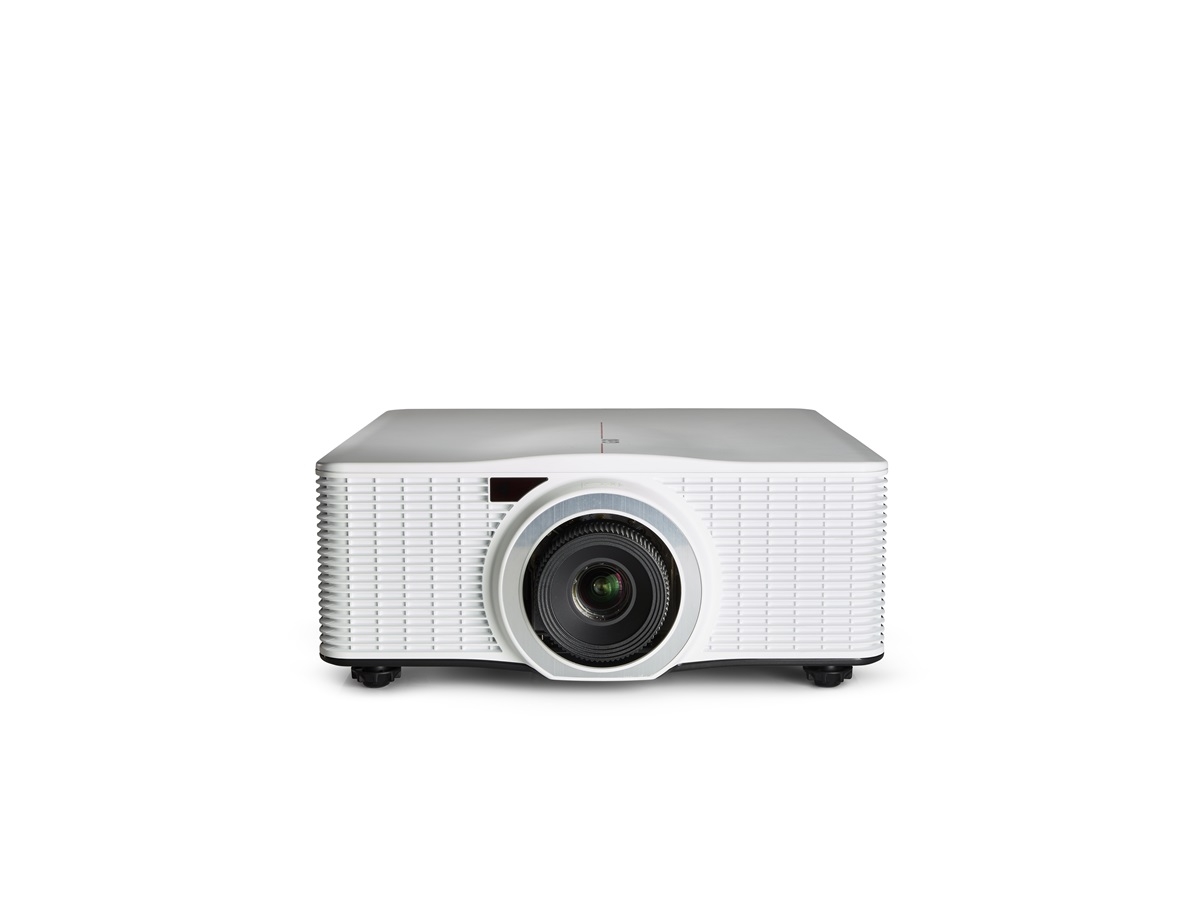

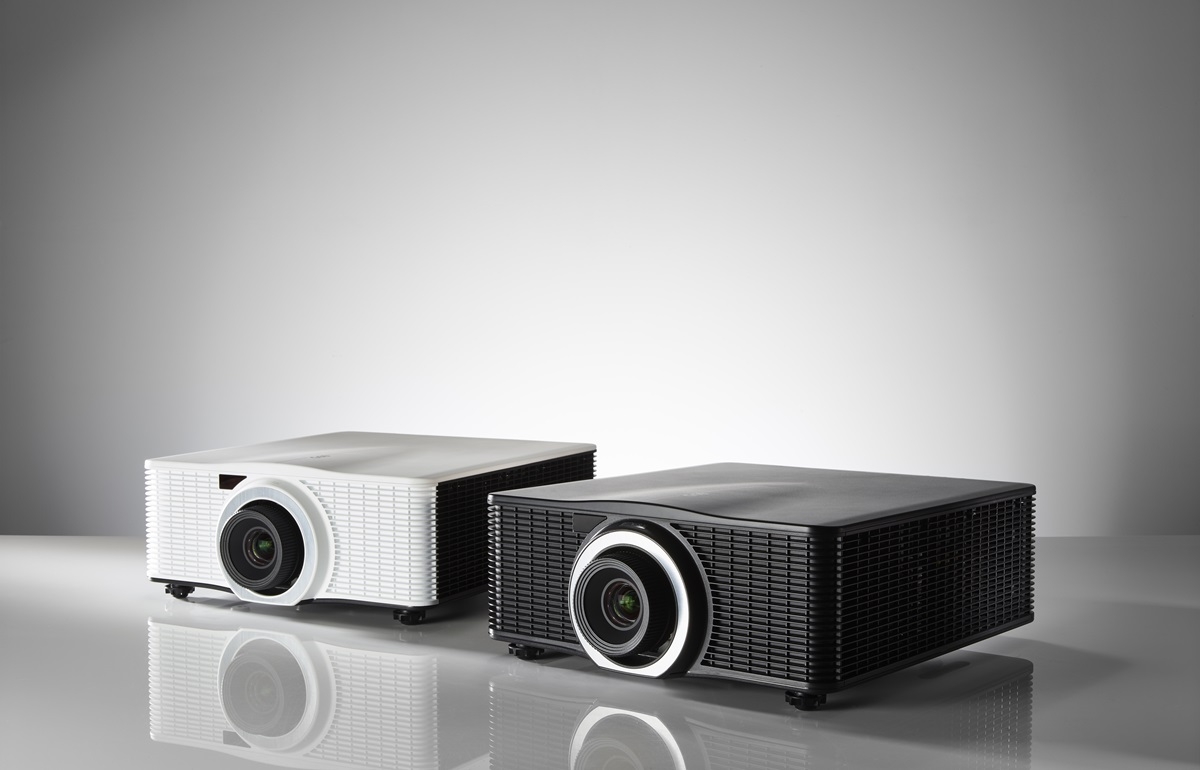

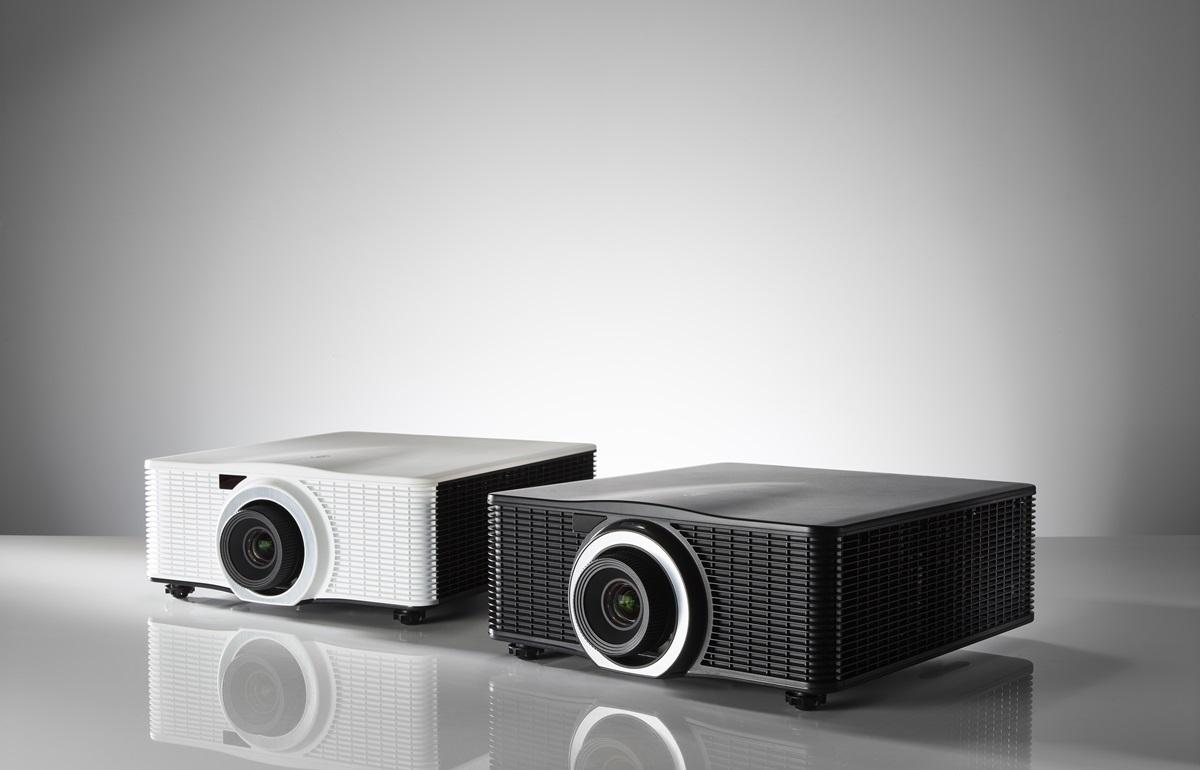

The projectors are available in black and white, allowing you to choose the perfect fit for your specific environment. Their uniform compact size, the compatibility with other Barco products and the wide lens shift range enlarge the projectors flexibility.
| Projector type | Single chip DLP laser phosphor projector |
|---|---|
| Resolution | 1,920 x 1,200 (WUXGA) |
| Brightness | 7,000 center lumens |
| Contrast ratio | 1,200:1 sequential; 6,000:1 dynamic; Extreme black: 100,000:1 |
| Brightness uniformity | 85% |
| Aspect ratio | 16:10 |
| Lens type | G-lenses - 0.36:1 / 0.75-0.95:1 / 0.95-1.22:1 / 1.22-1.52:1 / 1.52-2.92:1 / 2.90-5.50:1 |
| Optical lens shift | Up to 100% vertical lens shift, up to 30% horizontal lens shift. Motorized zoom, focus, vertical and horizontal shift |
| Color correction | Yes |
| CLO (constant light output) | Yes |
| Light source | Laser phosphor |
| Light source lifetime | Up to 20,000hrs |
| Sealed DLP™ core | Yes |
| Orientation | 360° rotation, no restrictions |
| 3D | Active stereoscopic 3D |
| Image processing | Embedded warp & blend possible via Ptoolset |
| Keystone correction | Yes |

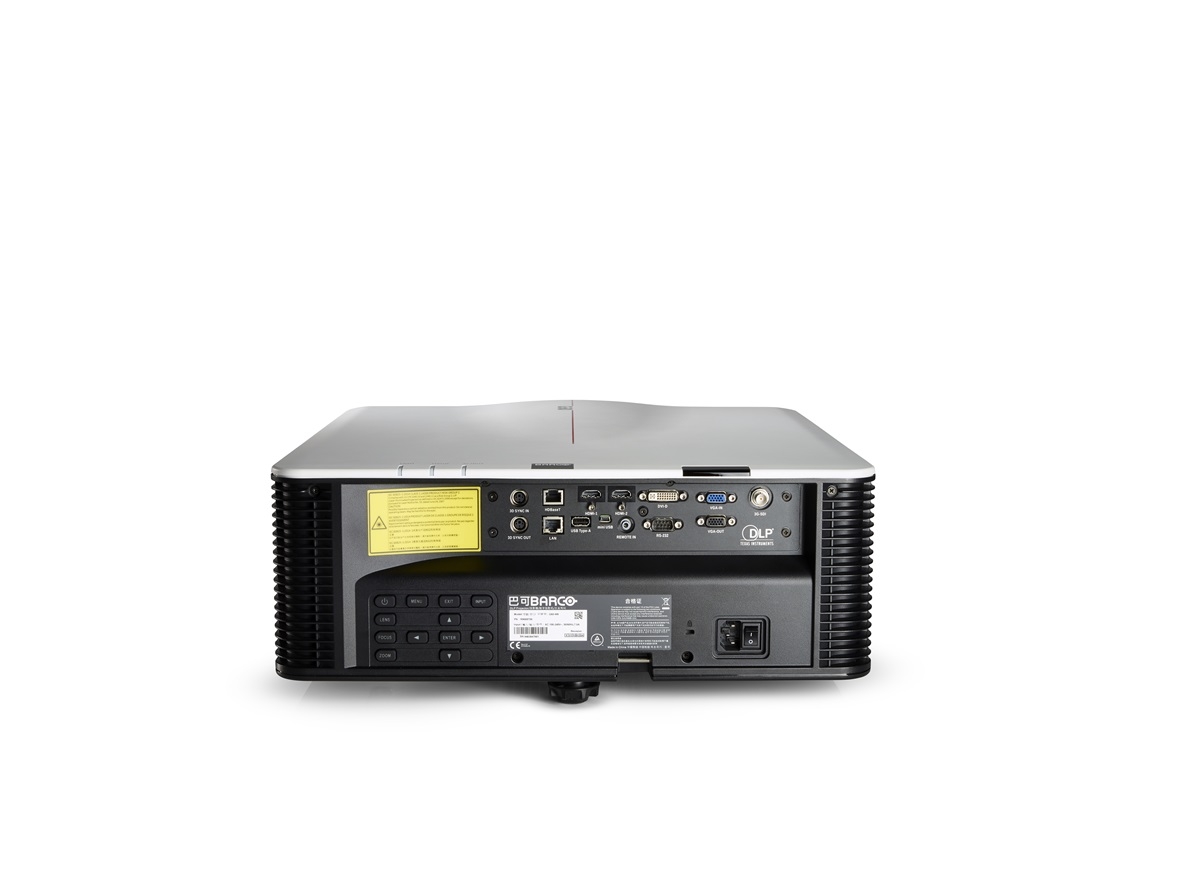

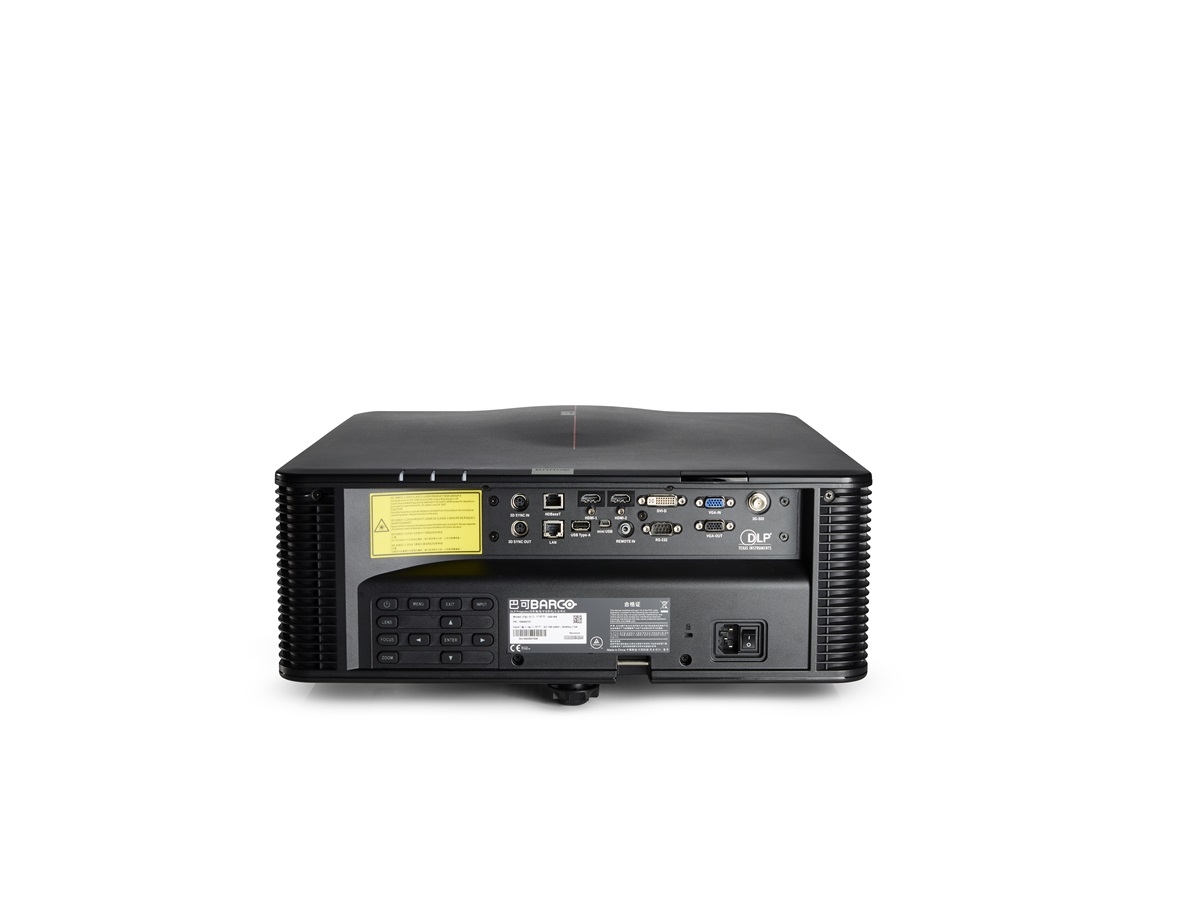

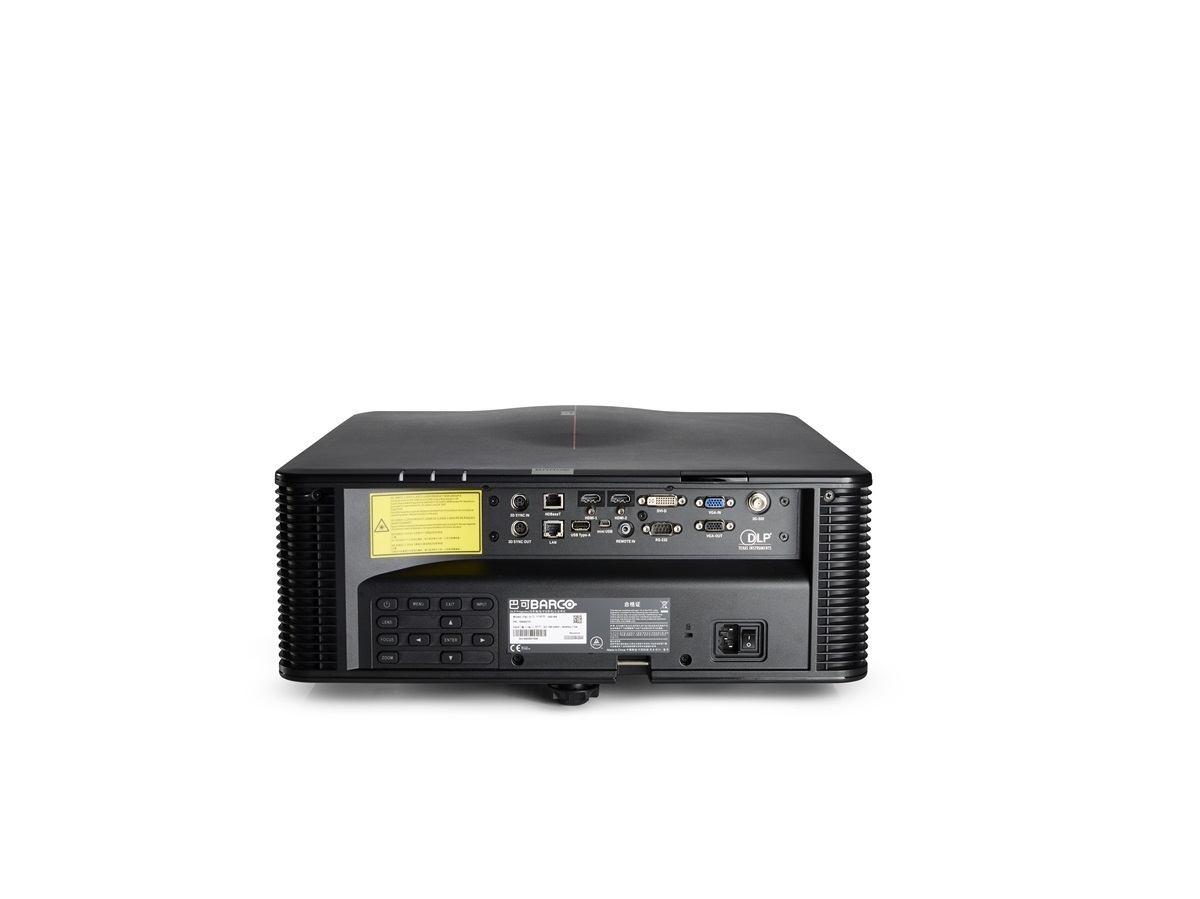

| Inputs | 2x HDMI 1.4 / DVI-D / HDBaseT / 3G-SDI / VGA (D-Sub 15 pin) / RJ 45 Ethernet / RS232 in |
| Input resolutions | Up to 1,920 x 1,200 @ 60Hz |
| Software tools | Projector Toolset |
| Control | IR, RS232, RJ45, 3.5mm phone jack for wired remote |
| Network connection | 10/100 Ethernet, RJ45 |
| Power requirements | 100-240V / 50-60Hz |
| Power consumption | 520W nominal, 600W maximum |
| BTU per hour | 1,780 BTU/h nominal; 2,050 BTU/h maximum |
| Standby power | < 0.5W |
| Noise level (typical at 25°C/77°F) | 36dB(A) - 40dB(A) depending on the used mode |
| Operating temperature | 5 - 40 °C (sea level) |
| Storage temperature | -10 to 60 °C |
| Operating humidity | 10 - 85% RH, non-condensing |
| Storage humidity | 5 - 90% RH, non-condensing |
| Dimensions (WxLxH) | without feet: 484 x 529 x 195 mm / 19.06 x 20.83 x 7.68 in |
| Weight | without lens: 16.9 kg / 37.3 lbs |
| Standard accessories | Power cord, wireless remote control |
| Certifications | CE, FCC Class A, cTUVUS, CCC, EAC, KCC, RCM, BIS, BSMI |
| Warranty | Limited 3 years parts and labor |
